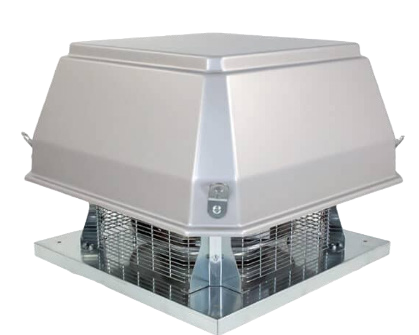

Power Roof Ventilators Upblast Fan
The backward inclined centrifugal upblast direct drive exhaust fan designed for roof mounting application to eleminate the hot or contaminated air directly from
mounted surface. Highly efficient with low power consumption.
Highlights
- Wheel- Non overloading backward inclined alluminum alloy wheel to generate high efficiency with low sound. each wheel is statically and dynamically balanced.
- Motor- Best in class motor,carefully matched with load and mounted outside the air stream.
- Rhombus hood- specially designed to withstand at high speed wind and cooling fins on sides to efficaciaus cooling of motor to maxiamize motor life.
- Curb Cap- single piece weathertight curb cap with pre punched mounting holes to easily install in roof structure
Performance
Capacity –
Air Volume
1000 CFM – 100 Watt
2000 CFM – 300 Watt
3500 CFM – 500 Watt
5000 CFM – 950 wattt
Static Pressure- up to 1 inch
of H20
Motor option- 1 Ph /3 Ph
