Centrifugal Inline Cubic Fans Direct Drive

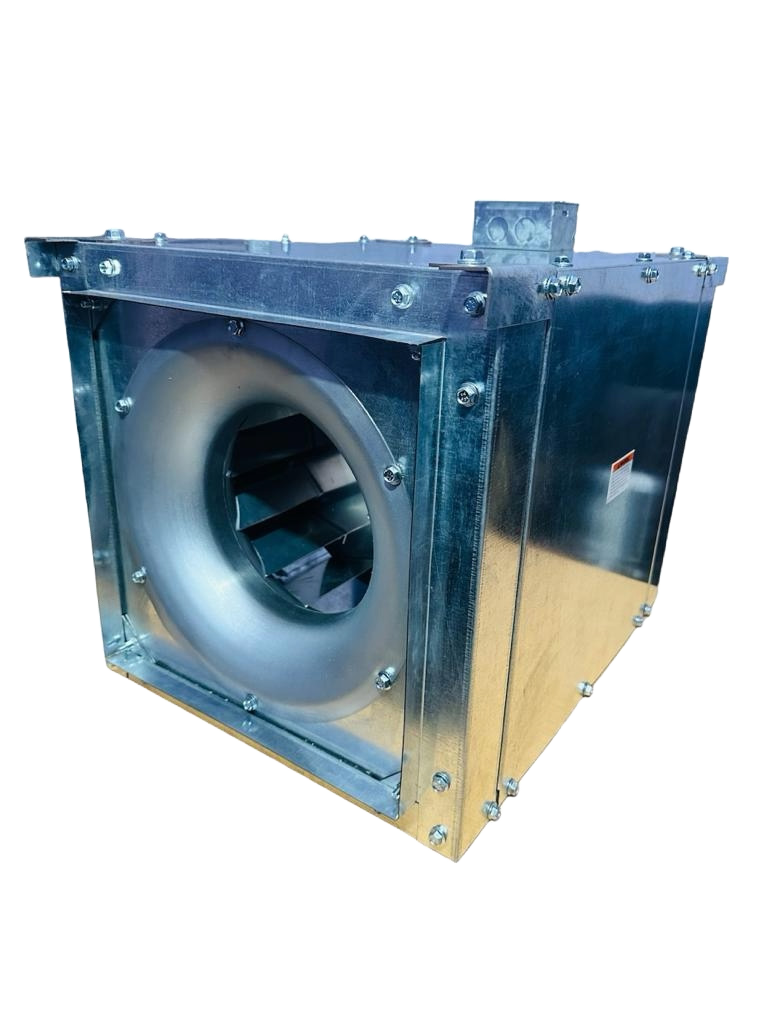

SUV’s model CUBIC centrifugal inline fans feature a unique combination of installation flexibility, rugged construction, ease of service, high efficiency and low sound levels. These compact inline fans are the ideal selection for indoor clean air applications including intake, exhaust, return or make-up air systems where space is a prime consideration. The need for costly square-to-round transition pieces is eliminated reducing installation costs. The square housing design, compact size and straight-thru airflow also give the system designer the flexibility to mount CUBIC fans in any configuration — horizontal, vertical or at any angle.
Housing Construction
The fan housing is constructed of rigid structural members and formed
galvanized steel panels. (Aluminum
construction is optional )structed
from heavy-gauge steel
Wheel

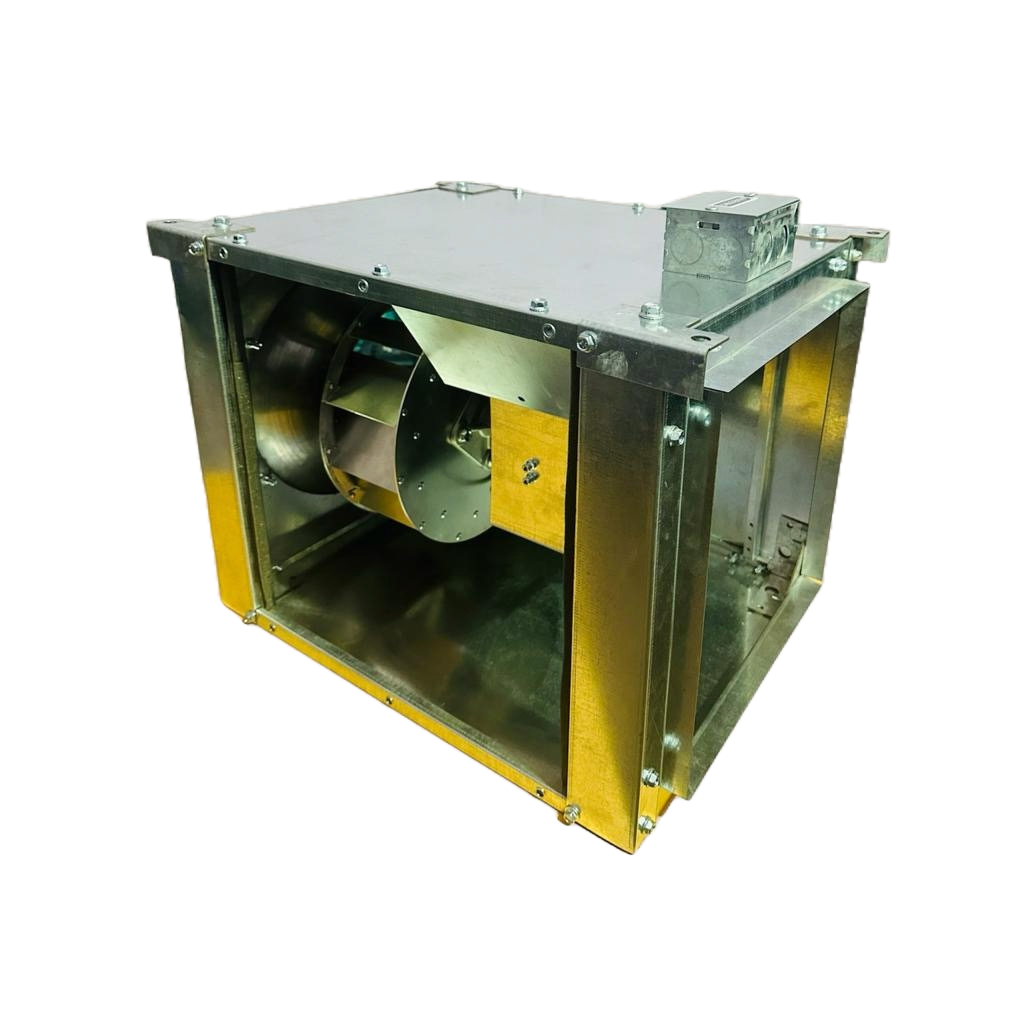

Backward inclined, non-overloading centrifugal wheel is utilized to deliver maximum efficiency. Each wheel is statically and dynamically balanced.
Duct Collars
Inlet and discharge duct collars are provided for easy duct connection. The square design provides a larger discharge area than tubular centrifugal and vane axial fans; outlet velocities are reduced for quieter operation.
Motor
Permanently lubricated, sealed ball bearing motors are
selected to provide years of
trouble-free operation with
minimal maintenance
